2D games: physics, input, camera, animation

These four modules make up a platformer or top-down game. Sky Run (examples/engine-demo) uses all of them, together with scenes, particles and a pen HUD.

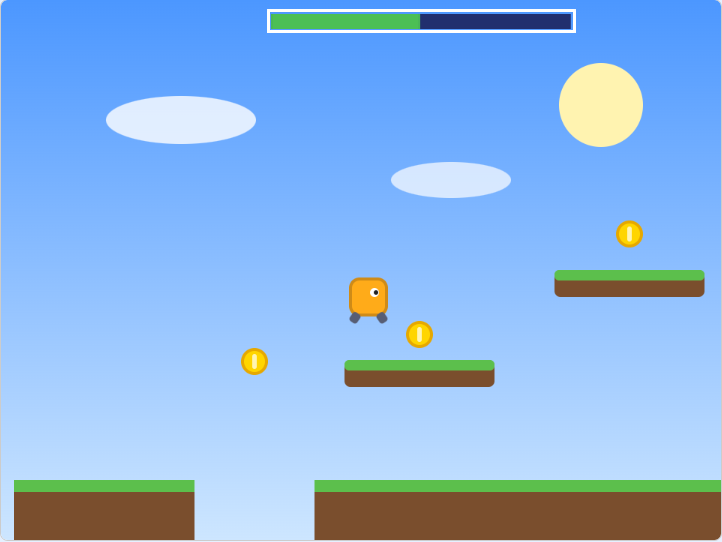

Sky Run

Physics

import * as Physics from "tts/physics"

Each sprite that calls these functions has its own body. Collisions are pixel-perfect against a solid sprite: draw every wall and floor on one sprite's costume (or tiles of it).

Function
`configure(gravity, friction, maxFall)`	e.g. `0.8, 0.8, 15`. Friction multiplies horizontal speed every frame.
`setHitbox(costume)`	collide using a plain rectangle costume, so animation frames can't snag on walls
`setStepUp(pixels)`	small steps and slopes the body climbs automatically (default 6)
`push(dx, dy)` / `setVelocity(x, y)`	change the velocity
`jump(power)`	jump if on the ground
`step(solid)`	platformer step: gravity, friction, move and collide
`stepTopDown(solid)`	the same without gravity (friction on both axes)
`moveX(dx, solid)` / `moveY(dy, solid)`	move one axis with collision
`groundBelow(solid)`	is there ground right below?
`bounceInStage(halfW, halfH)`	reverse velocity at the stage edges
`vx`, `vy`, `onGround`, `hitWall`, `hitCeiling`	the body's state after a step

Physics.configure(0.8, 0.8, 14);
Physics.setHitbox("physics");
forever(() => {
  Physics.push(Input.axisX() * 1.2, 0);
  if (Input.jumpPressed()) Physics.jump(12);
  Physics.step("Level");
});

Input

import * as Input from "tts/input"

Function
`axisX()` / `axisY()`	-1, 0 or 1 from arrow keys and WASD
`jumpHeld()`	space, up or W held
`jumpPressed()`	true only on the frame a jump key goes down
`mouseClicked()`	true only on the frame the mouse goes down
`pressedOnce(key)`	true only on the frame `key` goes down

"Pressed" functions remember the previous frame per sprite, so call each one once per frame.

Camera

import * as Camera from "tts/camera"

Keep positions in world coordinates and let the camera put sprites on screen. The camera is shared by all sprites.

Function
`follow(x, y, smoothing)`	ease toward a point (0.1–0.2 feels good)
`lookAt(x, y)` / `clampTo(minX, minY, maxX, maxY)`	snap / keep inside the level
`shake(strength)` / `setZoom(percent)`	effects
`place(worldX, worldY)`	put this sprite on screen; hides it when off screen and sets `onScreen`
`placeTile(worldX, worldY, halfW, halfH)`	the same for big sprites such as level tiles
`toWorldX(screenX)` / `toWorldY(screenY)`	screen to world
`toScreenX(worldX)` / `toScreenY(worldY)`	world to screen
`mouseWorldX()` / `mouseWorldY()`	the mouse in world coordinates
`view.cameraX`, `view.cameraY`, `view.zoom`	the shared camera

Scrolling platformers

Scratch won't move a sprite fully off stage, so:

Build levels from screen-sized tiles. Give the level sprite costumes tile1, tile2, ..., make one clone per tile, and call placeTile(i * 480, 0, 240, 180) every frame.
Run physics on screen, then convert back to world coordinates:

Camera.place(wx, wy);          // 1. put the player on screen
Physics.step("Level");         // 2. collide with the tiles on screen
wx = Camera.toWorldX(me.x);    // 3. back to world coordinates
wy = Camera.toWorldY(me.y);
Camera.follow(wx, wy, 0.12);   // 4. move the camera last

Let the player's script be the only one moving the camera, and make world objects clones, so they update after the player each frame.
A sprite can't go much below y = -180, so detect "fell in a pit" just under the floor (e.g. wy < -165).

Animation

import * as Anim from "tts/anim"

Name your frames <name><n>: walk1, walk2, ... The quick form plays one animation at a time per sprite:

if (!Physics.onGround) Anim.show("jump");
else if (Math.abs(Physics.vx) > 1) Anim.play("walk", 2, 8);   // 2 frames at 8 fps, looping
else Anim.show("idle");                                        // a single costume: no animation

Function
`play(name, frames, fps)`	loop `name1..nameN`; restarts from frame 1 when switching animations
`playOnce(name, frames, fps)`	play once, hold the last frame; returns true when finished
`show(costume)`	show one costume, no animation
`restart()`	start the current animation over

Or keep configured animations as objects (each clone gets its own):

const walk = new Anim.Animation("walk", 4, 10);
const die = new Anim.Animation("die", 6, 12, false);   // false = play once

onMessage("hit", () => die.restart());
forever(() => {
  walk.show();
  if (die.finished()) deleteClone();
});

Animation has restart(), show(), frame(), finished() and the fields prefix, frames, fps, loop and speed.
